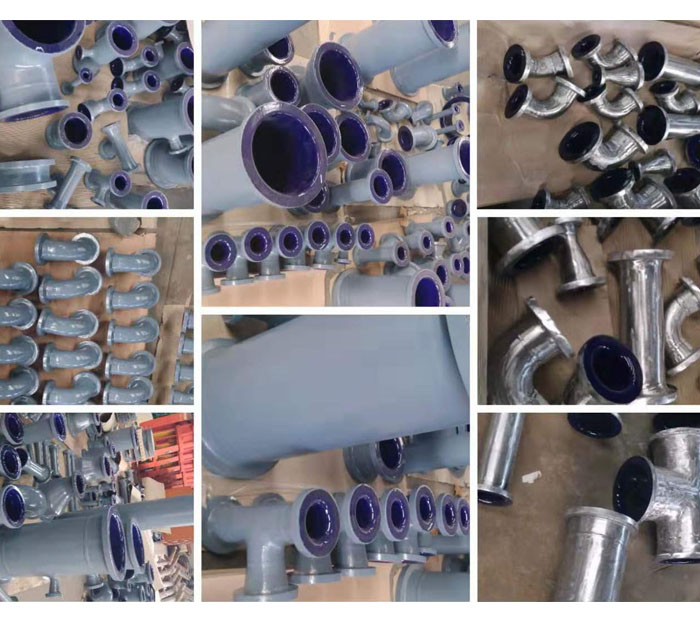

Glass Lined Elbow

Our glass lined elbows are meticulously crafted from high-grade steel and glass, offering exceptional corrosion resistance, durability, and easy installation to meet the demands of various industries.

Industry applications

The pressure vessel products produced by the company have been widely used in chemical industry, medicine, building materials, ceramics, refractory materials, metallurgy and other industries

chemical industry
Building materials industry
The pharmaceutical industry
Ceramic industry
Refractory materials industry
Metallurgical industry

Equipment Design Data

Design Pressure(MPa):	-0.1~1.0Mpa
Working pressure(Mpa):	-0.1~1.0Mpa
Design Temperature(℃):	-19-200
Working Temperature(℃):	-19-180
High Voltage Test(KV):	20
Enamel Thickness(mm):	0.8-2.0
Application Medium:	It can withstand the corrosion of various concentrations of organic acids, inorganic acids, organic solvents and weak alkalis (except for hydrofluoric acid, fluoride ion-containing media, the phosphoric acid and strong alkali concentration is greater than 30%, and the temperature is greater than 180 degrees Celsius).

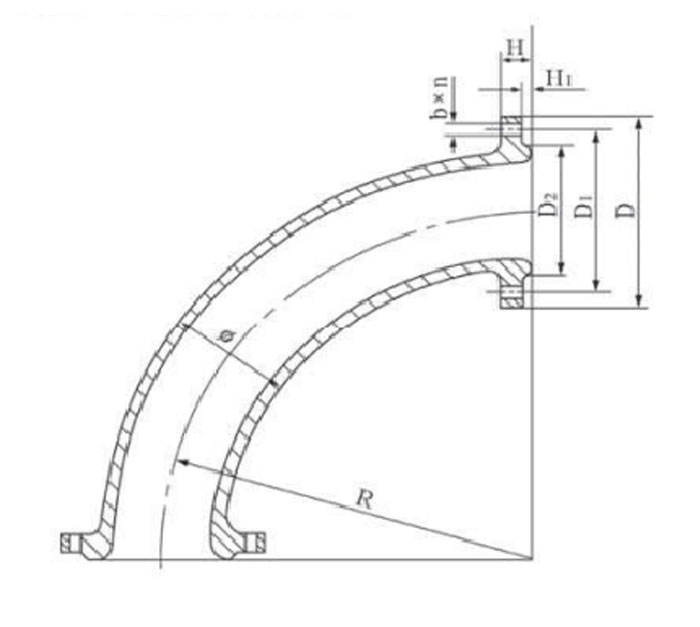

Glass lined pipe main parameter list (Unit/mm)

DN	φ	D	D1	D2	R	b	n	H	H1
50	57	140	110	90	75	14	4	16	3
70	76	160	130	110	100	14	4	16	3
80	89	185	150	128	120	18	4	18	3
100	108	205	170	148	150	18	4	18	3
125	133	235	200	178	190	18	8	20	3
150	159	260	225	202	225	18	8	20	3
200	219	315	280	258	300	18	8	22	3
250	273	370	335	312	375	18	12	24	3
