Glass lined turbine agitator

Our glass lined turbine agitators are meticulously crafted from high-grade stainless steel and glass, offering exceptional corrosion resistance and powerful mixing capabilities. We provide a wide range of impeller designs to meet your specific process needs.


Equipment Design Data

Design Pressure(MPa):NA

Working pressure(Mpa):NA

Design Temperature(℃):-19-200

Working Temperature(℃):-19-180

High Voltage Test(KV):20
Enamel Thickness(mm):0.8-2.0
Application Medium:It can withstand the corrosion of various concentrations of organic acids, inorganic acids, organic solvents and weak alkalis (except for hydrofluoric acid, fluoride ion-containing media, the phosphoric acid and strong alkali concentration is greater than 30%, and the temperature is greater than 180 degrees Celsius).

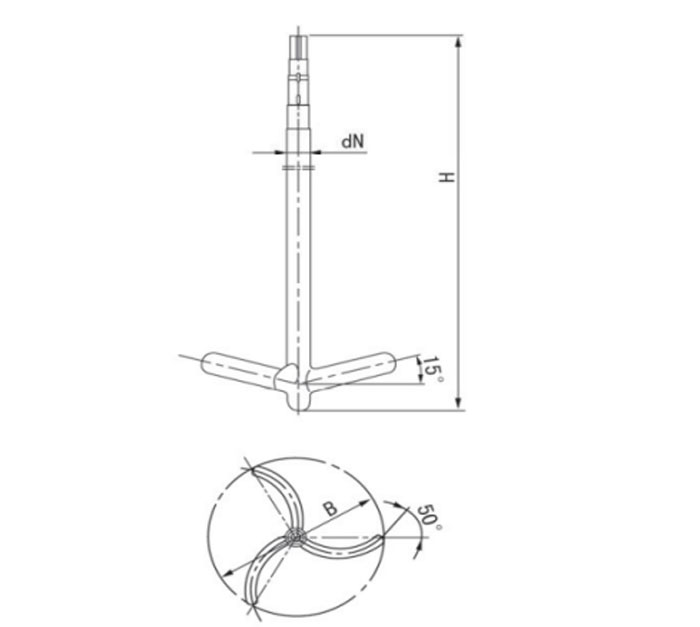

Glass lined agitator main parameter list (Unit/mm)

SizeNominal Volume
K50LK100LK200LK300LK500LK1000LK1500LK2000LK3000LK4000LK5000LK6300L
dN404050656580808095959595
B300300400500500700700700800800800800
H90010401250140015901900214024802625310032253600


Glass lined agitator main parameter list (Unit/mm)

SizeNominal Volume
F1500LF2000LF3000LF4000LF5000LF6300LF8000LF10000LF12500LF16000LF20000LF30000L
dN808095959595110110110130140160
B700700800800850850110012001200120013001300
H214024802625310032253600389040904610483753906145
