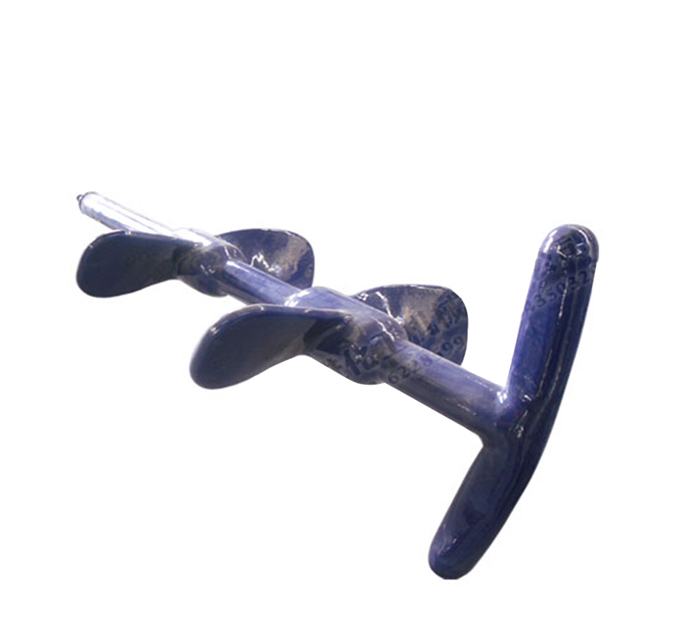

Glass lined combination agitator

Our glass lined combination agitators, meticulously crafted from high-grade steel and glass, offer a unique solution for complex mixing requirements. These agitators combine multiple impellers with different designs to deliver customized mixing profiles within a single unit.

Our glass lined combination agitators, meticulously crafted from high-grade steel and glass, offer a unique solution for complex mixing requirements. These agitators combine multiple impellers with different designs to deliver customized mixing profiles within a single unit.


Product Highlights:

  • Superior Corrosion Resistance: Withstands harsh acids, alkalis, salts, and other corrosive chemicals.
  • Customized Mixing: Achieve tailored mixing profiles by combining various impeller designs (e.g., anchor and turbine).
  • Efficient Mixing Performance: Optimizes mixing for diverse applications, from low-viscosity liquids to high-viscosity pastes.
  • Easy Cleaning: Smooth glass surface facilitates effortless cleaning and sterilization.
  • Wide Range of Applications: Ideal for chemical, pharmaceutical, food processing, and laboratory applications with demanding mixing needs.


Benefits of Combination Agitators:

  • Enhanced Mixing Efficiency: Achieve superior homogenization and avoid stagnant zones within the reactor vessel.
  • Reduced Energy Consumption: Optimize mixing by utilizing the strengths of different impeller designs.
  • Increased Process Flexibility: Handle a wider range of mixing requirements with a single agitator unit.


Equipment Design Data

Design Pressure(MPa):NA

Working pressure(Mpa):NA

Design Temperature(℃):-19-200

Working Temperature(℃):-19-180

High Voltage Test(KV):20
Enamel Thickness(mm):0.8-2.0
Application Medium:It can withstand the corrosion of various concentrations of organic acids, inorganic acids, organic solvents and weak alkalis (except for hydrofluoric acid, fluoride ion-containing media, the phosphoric acid and strong alkali concentration is greater than 30%, and the temperature is greater than 180 degrees Celsius).

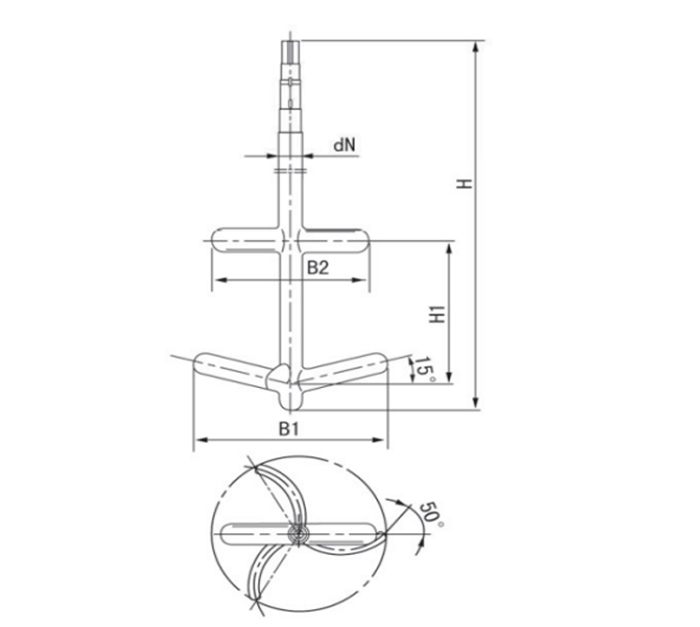

Glass lined agitator main parameter list (Unit/mm)


SizeNominal Volume
K50LK100LK200LK300LK500LK1000LK1500LK2000LK3000LK4000LK5000LK6300L
dN404050656580808095959595
B1300300400500500700700700800800850850
B2300300400400450680680680720720720720
H1--150200400600600600700700800800
H90010401250140015901900214024802625310032253600


Glass lined agitator main parameter list (Unit/mm)


SizeNominal Volume
F1500LF2000LF3000LF4000LF5000LF6300LF8000LF10000LF12500LF16000LF20000LF30000L
dN808095959595110110110130140160
B1700700800800850850110012001200120013001300
B258058072072072072088098098098010801080
H1600600700700800800100011001200120013001300
H214024802625310032253600389040904610483753906145
