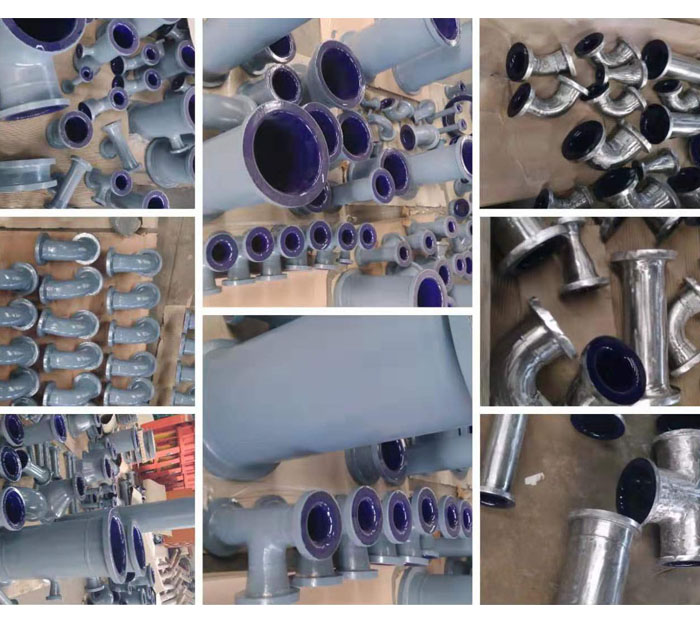

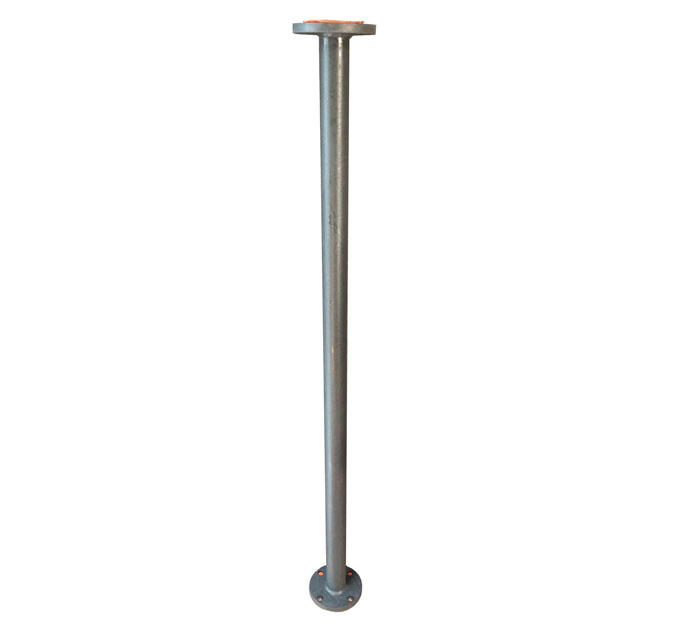

Our glass lined pipes are meticulously crafted from high-grade steel and glass, offering exceptional corrosion resistance, durability, and easy installation to meet the demands of various industries.
Product Highlights:
- Superior Corrosion Resistance: Withstands harsh acids, alkalis, salts, and other corrosive chemicals.
- Durable Construction: Can withstand high pressures and temperatures.
- Easy Installation: Simple and straightforward installation process.
- Smooth Inner Surface: Minimizes flow resistance and facilitates easy cleaning.
Wide Range of Applications: Suitable for chemical, pharmaceutical, food processing, and laboratory applications.
Ideal Applications:
- Chemical Industry: Transporting corrosive chemicals, acids, and alkalis.
- Pharmaceutical Industry: Conveying pharmaceutical fluids, solvents, and intermediates.
- Food Processing Industry: Transferring food products, beverages, and sanitizers.
- Laboratory Applications: Plating experimental setups, handling laboratory chemicals, and transferring sterile liquids.
Equipment Design Data
| Design Pressure(MPa): | -0.1~1.0Mpa |
|
|
| Working pressure(Mpa): | -0.1~1.0Mpa |
|
|
| Design Temperature(℃): | -19-200 |
|
|
| Working Temperature(℃): | -19-180 |
|
|
| High Voltage Test(KV): | 20 |
|
| Enamel Thickness(mm): | 0.8-2.0 |
|
| Application Medium: | It can withstand the corrosion of various concentrations of organic acids, inorganic acids, organic solvents and weak alkalis (except for hydrofluoric acid, fluoride ion-containing media, the phosphoric acid and strong alkali concentration is greater than 30%, and the temperature is greater than 180 degrees Celsius). |
|
|
|
|
|
|
|
|
|
|

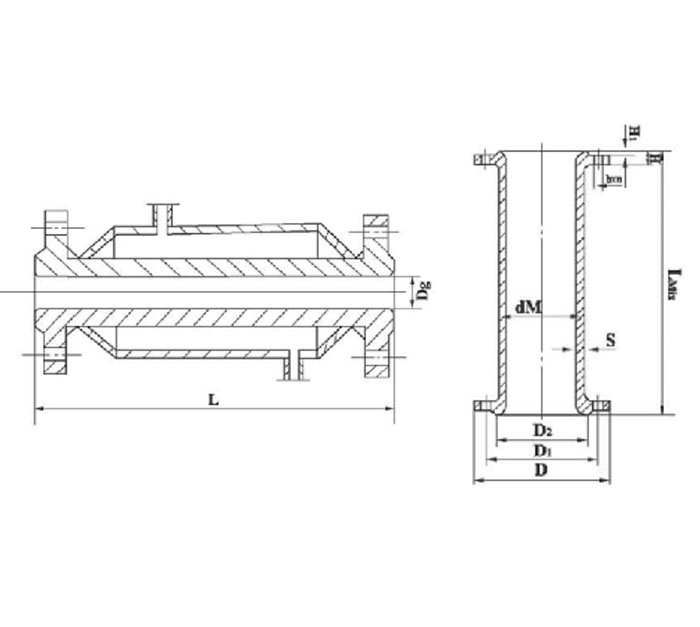

Glass lined pipe main parameter list (Unit/mm)
| DN | Pipe |
|
|
|
|
|
| Bolt |
| dM | S | D | D1 | D2 | LMIx | H | H1 | b | n |
| 32 | 38 | 3.5 | 120 | 90 | 70 | 250 | 16 | 2 | 14 | 4 |
| 50 | 57 | 3.5 | 140 | 110 | 90 | 500 | 16 | 3 | 14 | 4 |
| 70 | 76 | 4 | 160 | 130 | 110 | 800 | 16 | 3 | 14 | 4 |
| 80 | 89 | 4 | 185 | 150 | 128 | 1000 | 18 | 3 | 18 | 4 |
| 100 | 108 | 4 | 205 | 170 | 148 | 1500 | 18 | 3 | 18 | 4 |
| 125 | 133 | 4 | 235 | 200 | 178 | 1500 | 20 | 3 | 18 | 8 |
| 150 | 159 | 4.5 | 260 | 225 | 202 | 1500 | 20 | 3 | 18 | 8 |
| 200 | 219 | 6 | 315 | 280 | 258 | 1500 | 22 | 3 | 18 | 8 |
| 250 | 273 | 8 | 370 | 335 | 312 | 1500 | 24 | 3 | 18 | 12 |
