We offer both anchor and frame agitator designs, meticulously crafted from premium glass and stainless steel. Each type provides exceptional performance for various mixing requirements.
Product Highlights:
- Superior Corrosion Resistance: Withstands harsh acids, alkalis, salts, and other corrosive chemicals.
- Efficient Mixing: Ensures thorough and uniform mixing of liquids in your reactor vessels.
- Customizable Design: Tailored to your specific mixing needs, including size, pitch, and configuration.
- Easy Cleaning: Smooth glass surface facilitates effortless cleaning and sterilization.
- Wide Range of Applications: Suitable for chemical, pharmaceutical, food processing, and laboratory applications.
Anchor Agitator:
- Ideal for low to medium viscosity liquids and solid-liquid suspensions.
- Provides efficient axial flow and good solids suspension.
Frame Agitator:
- Ideal for high viscosity liquids and shear-sensitive materials.
- Offers gentle mixing and scraping capabilities.
Equipment Design Data
| Design Pressure(MPa): | NA |
|
|
| Working pressure(Mpa): | NA |
|
|
| Design Temperature(℃): | -19-200 |
|
|
| Working Temperature(℃): | -19-180 |
|
|
| High Voltage Test(KV): | 20 |
|
| Enamel Thickness(mm): | 0.8-2.0 |
|
| Application Medium: | It can withstand the corrosion of various concentrations of organic acids, inorganic acids, organic solvents and weak alkalis (except for hydrofluoric acid, fluoride ion-containing media, the phosphoric acid and strong alkali concentration is greater than 30%, and the temperature is greater than 180 degrees Celsius). |
|
|
|
|
|
|
|
|
|
|

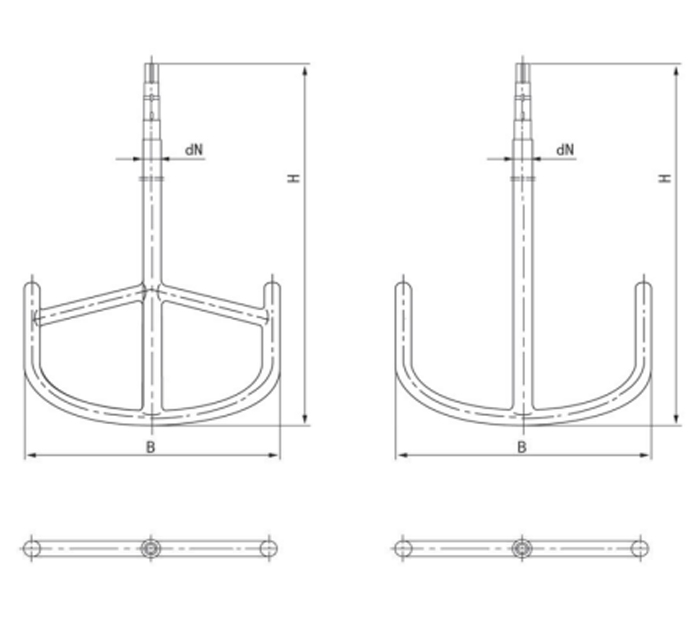

Glass lined agitator main parameter list (Unit/mm)
| Size | Nominal Volume |
| K50L | K100L | K200L | K300L | K500L | K1000L | K1500L | K2000L | K3000L | K4000L | K5000L | K6300L | K8000L | K10000L |
| dN | 40 | 40 | 50 | 65 | 65 | 80 | 80 | 80 | 95 | 95 | 95 | 95 | 110 | 110 |
| B | 420 | 520 | 620 | 720 | 810 | 1080 | 1180 | 1180 | 1440 | 1440 | 1580 | 1580 | 1800 | 1800 |
| H | 900 | 1040 | 1280 | 1440 | 1670 | 1960 | 2140 | 2480 | 2625 | 3100 | 3225 | 3690 | 4230 | 4350 |
