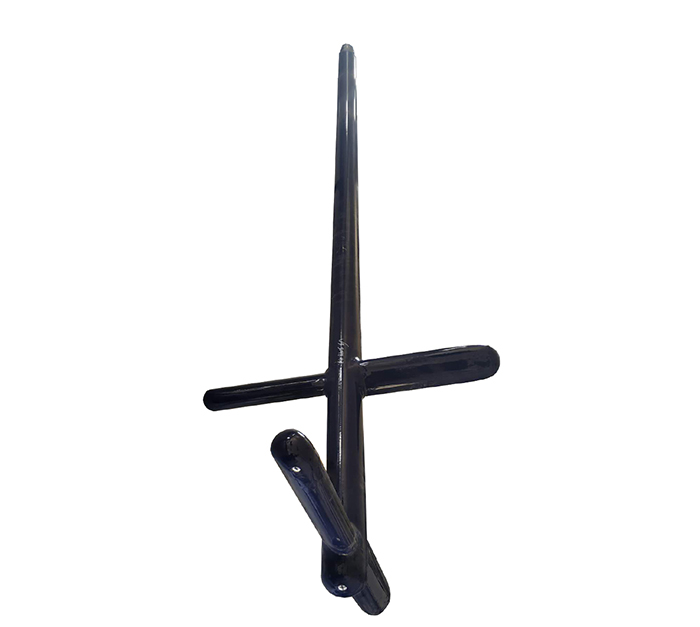

Our glass lined paddle agitators are meticulously crafted from high-grade stainless steel and glass, offering exceptional corrosion resistance and efficient mixing for various industries.
Product Highlights:
- Superior Corrosion Resistance: Withstands harsh acids, alkalis, salts, and other corrosive chemicals.
- Efficient Mixing: Provides effective low shear mixing for a wide range of liquids.
- Versatile Application: Suitable for various mixing tasks, from blending low viscosity liquids to suspending solids.
- Easy Cleaning: Smooth glass surface facilitates effortless cleaning and sterilization.
- Wide Range of Applications: Ideal for chemical, pharmaceutical, food processing, and laboratory applications.
Ideal Applications:
- Chemical Industry: Mixing and blending low to medium viscosity chemicals.
- Pharmaceutical Industry: Gently mixing pharmaceutical solutions and suspending solids.
- Food Processing Industry: Mixing and blending food products, syrups, and broths.
- Laboratory Applications: Mixing and suspending solutions in laboratory experiments.
Equipment Design Data
| Design Pressure(MPa): | NA |
|
|
| Working pressure(Mpa): | NA |
|
|
| Design Temperature(℃): | -19-200 |
|
|
| Working Temperature(℃): | -19-180 |
|
|
| High Voltage Test(KV): | 20 |
|
| Enamel Thickness(mm): | 0.8-2.0 |
|
| Application Medium: | It can withstand the corrosion of various concentrations of organic acids, inorganic acids, organic solvents and weak alkalis (except for hydrofluoric acid, fluoride ion-containing media, the phosphoric acid and strong alkali concentration is greater than 30%, and the temperature is greater than 180 degrees Celsius). |
|
|
|
|
|
|
|
|
|
|

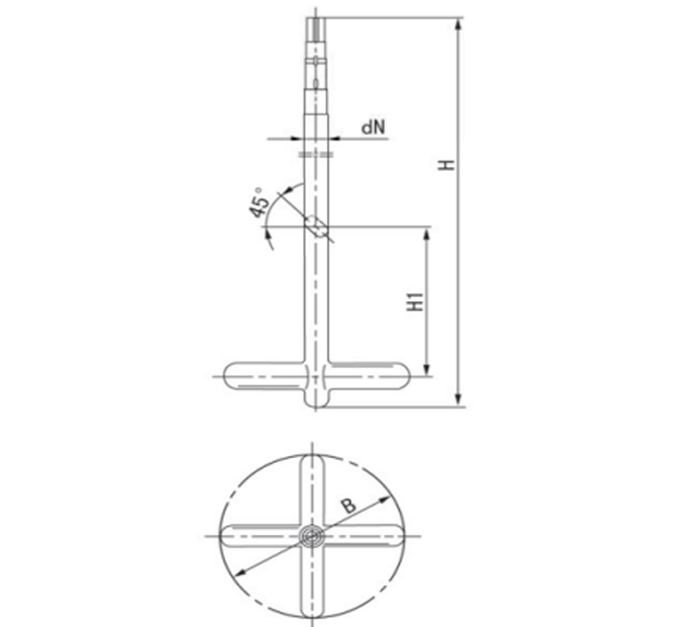

Glass lined agitator main parameter list (Unit/mm)
| Size | Nominal Volume |
| K50L | K100L | K200L | K300L | K500L | K1000L | K1500L | K2000L | K3000L | K4000L | K5000L | K6300L |
| dN | 40 | 40 | 50 | 65 | 65 | 80 | 80 | 80 | 95 | 95 | 95 | 95 |
| B | 300 | 300 | 400 | 400 | 450 | 680 | 680 | 680 | 720 | 720 | 720 | 720 |
| H1 | 100 | 120 | 150 | 200 | 400 | 600 | 600 | 600 | 700 | 700 | 700 | 700 |
| H | 900 | 1040 | 1250 | 1400 | 1590 | 1900 | 2140 | 2480 | 2625 | 3100 | 3225 | 3600 |
Glass lined agitator main parameter list (Unit/mm)
| Size | Nominal Volume |
| F1500L | F2000L | F3000L | F4000L | F5000L | F6300L | F8000L | F10000L | F12500L | F16000L | F20000L | F30000L |
| dN | 80 | 80 | 95 | 95 | 95 | 95 | 110 | 110 | 110 | 130 | 140 | 160 |
| B | 680 | 680 | 720 | 720 | 720 | 720 | 880 | 980 | 980 | 980 | 1080 | 1300 |
| H1 | 600 | 600 | 700 | 700 | 800 | 800 | 1000 | 1100 | 1200 | 1200 | 1300 | 1300 |
| H | 2140 | 2480 | 2625 | 3100 | 3225 | 3600 | 3890 | 4090 | 4610 | 4837 | 5390 | 6145 |
