ZW Type Glass Lined Storage Tank - Horizontal, High-Quality, Corrosion-Resistant Storage Solutions

Our ZW type (horizontal type) glass lined storage tank is meticulously crafted from high-grade steel and glass, offering exceptional corrosion resistance, abrasion resistance, and easy cleaning. Its horizontal design provides space-saving storage solutions for a wide range of liquids, meeting the demands of various industries.

Product Highlights:

Superior Corrosion Resistance: Withstands harsh acids, alkalis, salts, and other corrosive chemicals.
Excellent Abrasion Resistance: The glass lining boasts exceptional hardness and smoothness, enduring high-intensity wear and tear.
Effortless Cleaning: The smooth glass surface facilitates effortless cleaning and sterilization.
Space-Saving Horizontal Design: Maximizes storage capacity while minimizing floor space requirements.
Wide Temperature Range: Can be used within a temperature range of -20℃ to 200℃.
Customization Available: We can tailor the ZW type (horizontal type) glass lined storage tank to your specific requirements, including size, specifications, and configuration.

Ideal Applications:

Chemical Industry: Storing acids, alkalis, salts, and other chemicals
Pharmaceutical Industry: Storing drugs, intermediates, and other raw materials
Food Processing Industry: Storing food, beverages, and other liquids
Other Industries: Storing various liquids, such as water, oil, paint, etc.

Equipment Design Data

Design Pressure(MPa):	ATM
Working pressure(Mpa):	ATM
Design Temperature(℃):	-19-200
Working Temperature(℃):	-19-180
High Voltage Test(KV):	20
Enamel Thickness(mm):	0.8-2.0
Application Medium:	It can withstand the corrosion of various concentrations of organic acids, inorganic acids, organic solvents and weak alkalis (except for hydrofluoric acid, fluoride ion-containing media, the phosphoric acid and strong alkali concentration is greater than 30%, and the temperature is greater than 180 degrees Celsius).

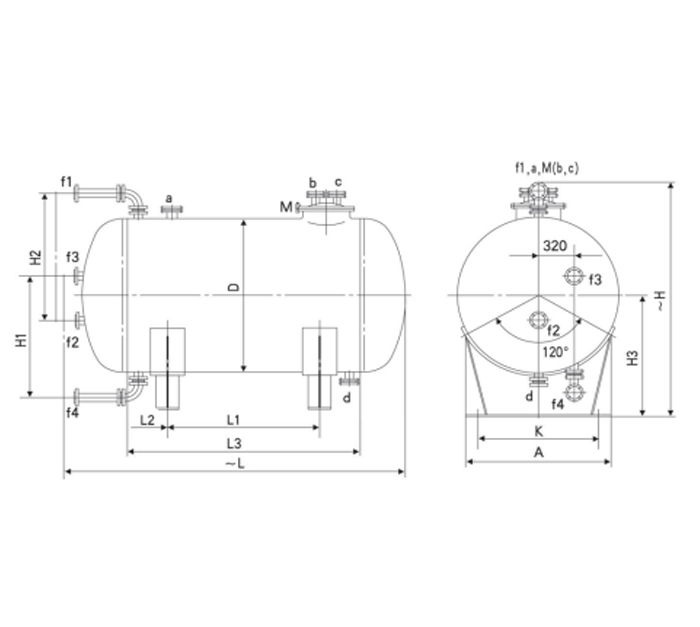

Equipment Dimension Sheet

Nominal Capacity(L)	Actual Capacity(L)	Main Dimension(mm)											Nozzle DN						Weight(Kg)
Nominal Capacity(L)	Actual Capacity(L)	D	H1	H2	H3	H	L1	L2	L3	L	A	K	a	b	c	d	f1-4	M	Weight(Kg)
ZW3000	3337	1450	1100	1200	1089	2146	814	320	1454	2288	1060	900	80	70	70	80	70	400	1700
ZW4000	4457	1450	1100	1200	1089	2146	1494	320	2134	2968	1060	900	80	70	70	80	70	400	2000
ZF5000	5550	1600	1200	1200	1166	2300	1420	360	2140	3052	1120	960	80	70	70	80	70	400	2500
ZF6300	7024	1750	1300	1300	1243	2454	1474	390	2254	3246	1280	1120	80	70	70	80	70	400	3200
ZF8000	9810	1900	1300	1400	1318	2604	1590	420	2430	3496	1360	1200	80	80	80	80	70	400	3800
ZF10000	11094	2000	1400	1400	1368	2704	1880	450	2780	3920	1420	1260	100	80	80	100	70	450	4700
ZF12500	13920	2000	1400	1400	1368	2704	2740	470	3680	4800	1420	1260	100	80	80	100	70	450	5700
ZF16000	17756	2200	1500	1500	1470	2870	2840	500	3840	5060	1580	1380	100	80	80	100	70	450	6700
ZF20000	22332	2400	1600	1600	1572	3112	2930	550	4030	5374	1720	1520	100	80	80	100	70	450	8300
ZW25000	27790	2800	1800	1900	1774	3516	2280	600	3480	5028	2470	2240	100	80	80	100	70	450	9900
ZW30000	33300	3000	1900	2000	1876	3700	2370	630	3630	5282	2180	1940	100	80	80	100	70	450	12300
ZW40000	42100	3000	1900	2000	1876	3700	3770	630	5030	6682	2180	1940	100	80	80	100	70	450	15900
ZW50000	52630	3400	1900	2000	2080	4110	3330	750	4830	6690	2480	2200	150	80	80	150	70	450	19800
