Glass Lined Disk Type Heat Exchanger

Our glass lined disk type heat exchangers are meticulously crafted from high-grade stainless steel and glass, offering exceptional corrosion resistance, compact design, and easy maintenance to meet the demands of various industries.

Product Highlights:

Superior Corrosion Resistance: Withstands harsh acids, alkalis, salts, and other corrosive chemicals.
Compact Design: Maximizes space utilization and minimizes installation footprint.
High Efficiency Heat Transfer: Efficiently transfers heat between liquids or gases.
Easy Maintenance: Simple disassembly and cleaning for reduced downtime.
Wide Range of Applications: Suitable for chemical, pharmaceutical, food processing, and other industrial applications.

Ideal Applications:

Chemical Industry: Heating and cooling of corrosive chemicals.
Pharmaceutical Industry: Sterilization and temperature control of pharmaceutical products.
Food Processing Industry: Pasteurization, cooling, and heating of food and beverages.
Other Industrial Applications: Heat recovery, temperature control, and cooling of various liquids and gases.

Equipment Design Data

Design Pressure(MPa):	0.25Mpa
Working pressure(Mpa):	0.25Mpa
Design Temperature(℃):	-19-200
Working Temperature(℃):	-19-200
High Voltage Test(KV):	20
Enamel Thickness(mm):	0.8-2.0

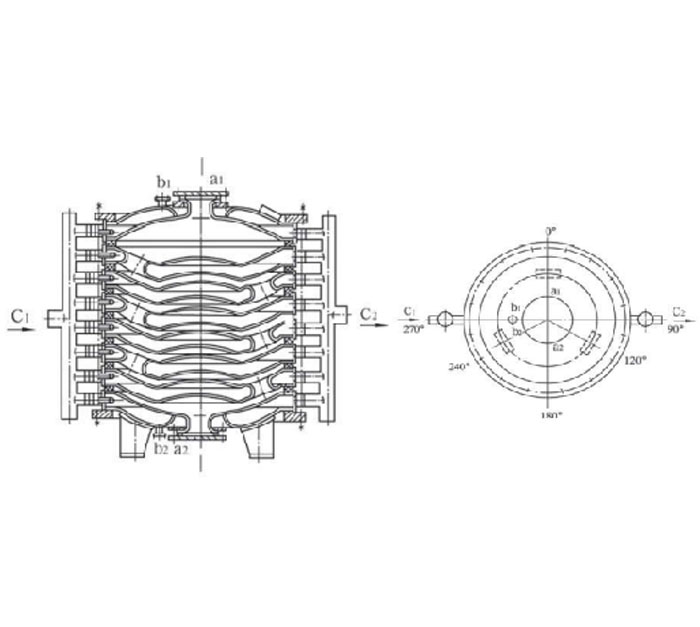

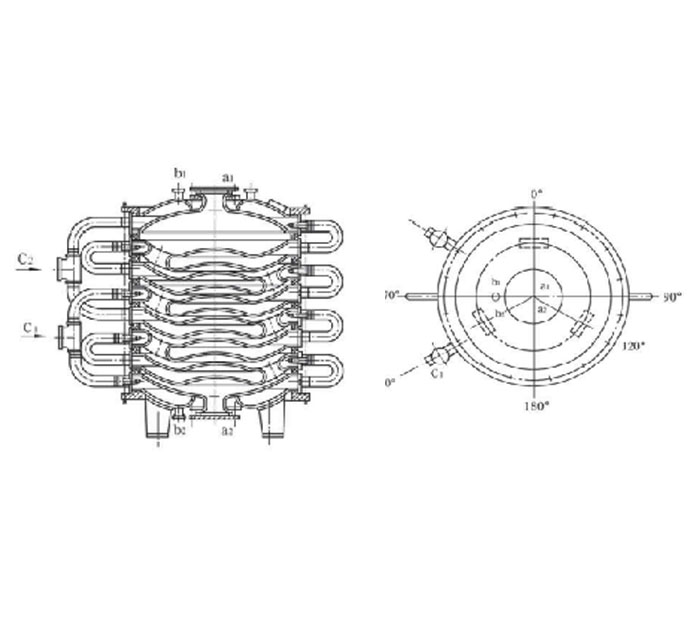

Application Medium:	It can withstand the corrosion of various concentrations of organic acids, inorganic acids, organic solvents and weak alkalis (except for hydrofluoric acid, fluoride ion-containing media, the phosphoric acid and strong alkali concentration is greater than 30%, and the temperature is greater than 180 degrees Celsius). Combination type: The heat exchanger is composed of head, bottom and condensation sheet. It contains series type, parallel type and series-parallel type(see drawing).

Parameter list

Type	Layer qty	Area(m2)	DN	D	B	-H	Weight

P0.5	1	1	610	450	175	650	160
	2	1.5				740	205
	3	2				830	250
	4	2.5				920	295
	5	3				1010	340
	6	3.5				1100	385
	7	4				1190	420
	8	4.5				1280	465
	9	5				1370	510
	10	5.5				1460	555
P1	3	4	870	650	220	910	470
	4	5				1010	550
	5	6				1110	630
	6	7				1210	710
	7	8				1310	780
	8	9				1410	860
	9	10				1510	940
	10	11				1610	1020
P2	4	10	1050	850	250	1120	751
	5	12				1230	878
	6	14				1340	1005
	7	16				1450	1132
	8	18				1560	1245
	9	20				1670	1372
	10	22				1780	1500

Nozzle list

Symbol	DN			Service
Symbol	P0.5	P1	P2	Service
a1	DN100	DN125	DN125	Hot fluid inlet
a2	DN100	DN125	DN125	Hot fluid outlet
b1/C1	DN25	DN32	DN40	Cooling water outlet
b2/C2	DN25	DN32	DN40	Cooling water inlet
