The pressure vessel products produced by the company have been widely used in chemical industry, medicine, building materials, ceramics, refractory materials, metallurgy and other industries
| Design Pressure(MPa): | -0.1~1.0Mpa | ||
| Working pressure(Mpa): | -0.1~1.0Mpa | ||
| Design Temperature(℃): | -19-200 | ||
| Working Temperature(℃): | -19-180 | ||
| High Voltage Test(KV): | 20 | ||
| Enamel Thickness(mm): | 0.8-2.0 | ||
| Application Medium: | It can withstand the corrosion of various concentrations of organic acids, inorganic acids, organic solvents and weak alkalis (except for hydrofluoric acid, fluoride ion-containing media, the phosphoric acid and strong alkali concentration is greater than 30%, and the temperature is greater than 180 degrees Celsius). | ||

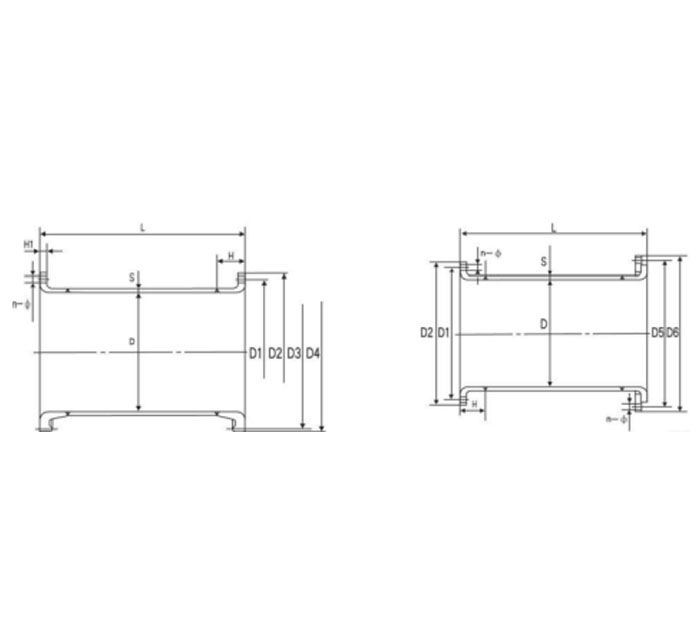

| Nominal Capacity(L) | Main Dimension(Unit/mm) | |||||||||||
| D | D1 | D2 | D3 | D4 | D5 | D6 | H | H1 | S | L≤ | n-φ | |
| 150 | 130 | 260 | 300 | - | - | 202 | 230 | 45 | 16 | 4.5 | 1000 | 8-18 |
| 200 | 190 | 320 | 360 | - | - | 258 | 290 | 50 | 18 | 6 | 1000 | 8-18 |
| 250 | 240 | 370 | 410 | - | - | 312 | 340 | 50 | 20 | 8 | 1000 | 12-18 |
| 300 | 300 | 430 | 470 | 388 | 400 | - | - | 49 | 24 | 8 | 1000 | 16-20 |
| 400 | 400 | 535 | 575 | 488 | 500 | - | - | 49 | 24 | 8 | 1000 | 20-20 |
| 500 | 500 | 635 | 675 | 588 | 600 | - | - | 59 | 24 | 8 | 1000 | 20-20 |
| 600 | 600 | 740 | 790 | 688 | 700 | - | - | 59 | 26 | 8 | 1500 | 24-23 |
| 700 | 700 | 850 | 900 | 788 | 800 | - | - | 69 | 26 | 10 | 1500 | 28-23 |
| 800 | 800 | 950 | 1005 | 888 | 900 | - | - | 69 | 26 | 10 | 1500 | 32-27 |
| 900 | 900 | 1050 | 1105 | 988 | 1000 | - | - | 69 | 28 | 10 | 1500 | 32-27 |
| 1000 | 1000 | 1150 | 1205 | 1088 | 1100 | - | - | 69 | 28 | 12 | 2000 | 36-27 |
| 1100 | 1100 | 1250 | 1305 | 1188 | 1210 | - | - | 69 | 32 | 12 | 2000 | 40-27 |
| 1200 | 1200 | 1350 | 1405 | 1288 | 1310 | - | - | 69 | 32 | 12 | 2000 | 40-27 |
