Our glass lined propeller agitators are meticulously crafted from premium glass and stainless steel, offering exceptional corrosion resistance and efficient flow generation for various industries.
Product Highlights:
- Superior Corrosion Resistance: Withstands harsh acids, alkalis, salts, and other corrosive chemicals.
- Efficient Flow Generation: Creates a strong axial flow pattern for thorough mixing within the vessel.
- Effective Mixing: Suitable for low to medium viscosity liquids and solid-liquid suspensions.
- Easy Cleaning: Smooth glass surface facilitates effortless cleaning and sterilization.
- Wide Range of Applications: Ideal for chemical, pharmaceutical, food processing, and laboratory applications.
Ideal Applications:
- Chemical Industry: Mixing and suspending chemicals in reactors and storage tanks.
- Pharmaceutical Industry: Mixing and blending pharmaceutical solutions and broths.
- Food Processing Industry: Agitating and homogenizing food products like syrups and broths.
- Laboratory Applications: Mixing and suspending liquids for various laboratory experiments.
Equipment Design Data
| Design Pressure(MPa): | NA |
|
|
| Working pressure(Mpa): | NA |
|
|
| Design Temperature(℃): | -19-200 |
|
|
| Working Temperature(℃): | -19-180 |
|
|
| High Voltage Test(KV): | 20 |
|
| Enamel Thickness(mm): | 0.8-2.0 |
|
| Application Medium: | It can withstand the corrosion of various concentrations of organic acids, inorganic acids, organic solvents and weak alkalis (except for hydrofluoric acid, fluoride ion-containing media, the phosphoric acid and strong alkali concentration is greater than 30%, and the temperature is greater than 180 degrees Celsius). |
|
|
|
|
|
|
|
|
|
|

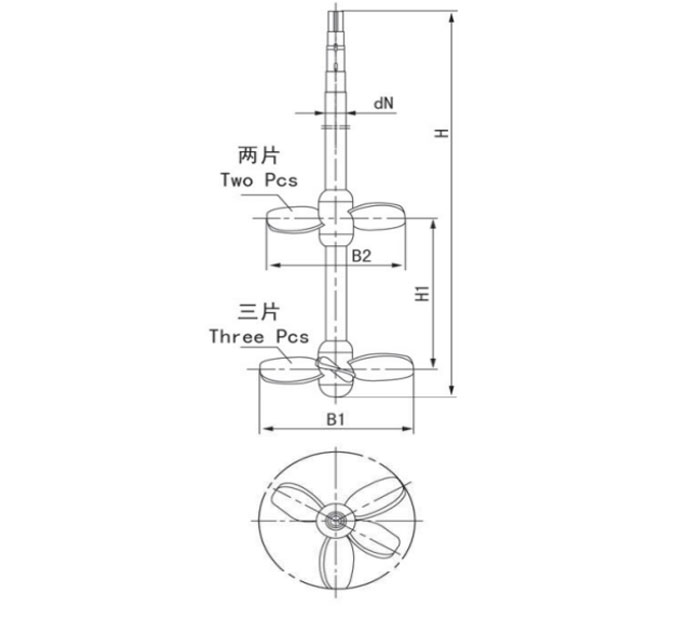

Glass lined agitator main parameter list (Unit/mm)
| Size | Nominal Volume |
| K50L | K100L | K200L | K300L | K500L | K1000L | K1500L | K2000L | K3000L | K4000L | K5000L | K6300L |
| dN | 40 | 40 | 50 | 65 | 65 | 80 | 80 | 80 | 95 | 95 | 95 | 95 |
| B1 | - | - | 450 | 500 | 500 | 580 | 630 | 630 | 780 | 780 | 830 | 830 |
| B2 | - | - | - | - | - | - | - | - | - | 780 | 830 | 830 |
| H1 | - | - | - | - | - | - | - | - | - | 800 | 900 | 1000 |
| H | - | - | 1250 | 1400 | 1590 | 1800 | 2010 | 2360 | 2480 | 2910 | 3065 | 3830 |
Glass lined agitator main parameter list (Unit/mm)
| Size | Nominal Volume |
| F1500L | F2000L | F3000L | F4000L | F5000L | F6300L | F8000L | F10000L | F12500L | F16000L | F20000L | F30000L |
| dN | 80 | 80 | 95 | 95 | 95 | 95 | 110 | 110 | 110 | 130 | 140 | 160 |
| B1 | 630 | 630 | 630 | 630 | 630 | 630 | 830 | 830 | 830 | 830 | 930 | 1030 |
| B2 | - | - | - | 580 | 580 | 580 | 780 | 780 | 780 | 780 | 880 | 1030 |
| H1 | - | - | - | 800 | 900 | 1000 | 1100 | 1100 | 1200 | 1300 | 1300 | 1500 |
| H | 2075 | 2406 | 2455 | 2935 | 3090 | 3750 | 3850 | 4090 | 4600 | 4750 | 5320 | 6000 |
